CAPACITY \ MODEL |

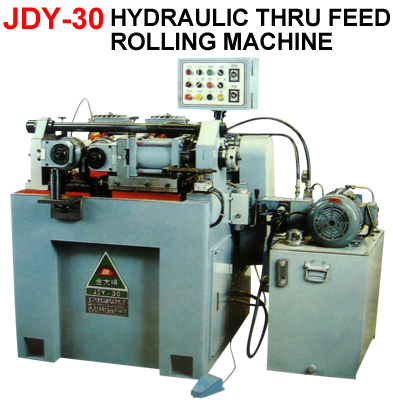

JDY-30 |
Diameter range of threads rolled |
6Ø ~30Ø mm |
Range of pitch rolled |
1.0 p ~ 3.0 p |
Max. length of thread rolled |
in feed and thru feed both available |
Speeds of dies |
18 x 28 x 40 x 55 rpm |
Max. pitch diameter of cylindrices dies |
148 mm |
Bore diameter of cylindrical dies |
54 mm |
Width of cylindrical dies |
70 mm |
Max. center distance of die-spindles |
175 mm |
Min. center distance of die-spindles |
120 mm |
Height from table surface to die-spindle |
130 mm |
Output ( pcs/min ) |
4 ~ 20 |
Machine motor |
5 HP |
Hydraulic motor |
5 HP |
Rolling pressure |
18 TONS |
Net weight ( Approx. ) |
1500 kgs |
Gross weight ( Approx. ) |
1700 kgs |
Overall dimensions. ( L x W x H ) |
1720 x 1260 x 1220 mm |
Shipping measurement ( L x W x H ) |
1760 x 1300 x 1400 mm |
