| CAPACITY \ MODEL |

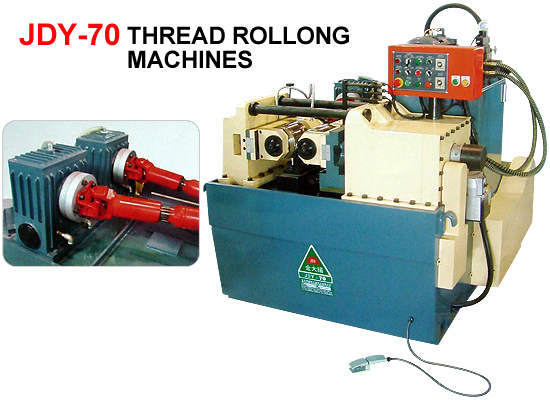

JDY-70 |
| Diameter range of threads rolled |
6Ø ~80Ø mm |
| Range of pitch rolled |
1.0 p ~ 6.0 p |
| Max. length of thread rolled |
in feed and thru feed both available |
| Speeds of dies |
10 x 20 x 28 x 38 rpm |
| Max. pitch diameter of cylindrices dies |
200 mm |
| Bore diameter of cylindrical dies |
70 mm |
| Width of cylindrical dies |
35 ~ 150 mm |
| Max. center distance of die-spindles |
230 mm |
| Min. center distance of die-spindles |
170 mm |
| Height from table surface to die-spindle |
150 mm |
| Output ( pcs/min ) |
4 ~ 30 |
| Machine motor |
15 HP |
| Hydraulic motor |
7 1/2 HP |
| Rolling pressure |
6640 TONS |
| Net weight ( Approx. ) |
3300 kgs |
| Gross weight ( Approx. ) |
3500 kgs |
| Overall dimensions. ( L x W x H ) |
1550 x 185 x 175 mm |
| Shipping measurement ( L x W x H ) |
1700 x 2000 x 1700 mm |
