CAPACITY \ MODEL |

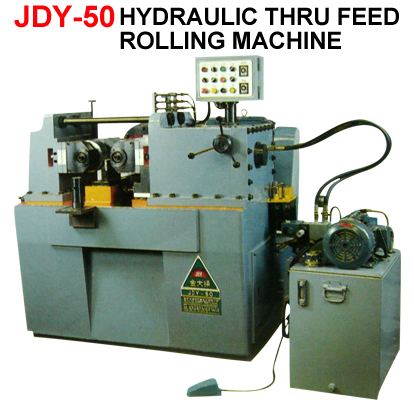

JDY-50 |
Diameter range of threads rolled |
6Ø ~80Ø mm |
Range of pitch rolled |
1.0 p ~ 6.0 p |
Max. length of thread rolled |
in feed and thru feed both available |
Speeds of dies |
10 x 20 x 28 x 38 rpm |
Max. pitch diameter of cylindrices dies |
180 mm |
Bore diameter of cylindrical dies |
54 mm |
Width of cylindrical dies |
35 ~ 150 mm |
Max. center distance of die-spindles |
230 mm |
Min. center distance of die-spindles |
170 mm |
Height from table surface to die-spindle |
150 mm |
Output ( pcs/min ) |
4 ~ 30 |
Machine motor |
10 HP |
Hydraulic motor |
5 HP |
Rolling pressure |
40 TONS |
Net weight ( Approx. ) |
2700 kgs |
Gross weight ( Approx. ) |
3160 kgs |
Overall dimensions. ( L x W x H ) |
1800 x 1500 x 1300 mm |
Shipping measurement ( L x W x H ) |
1880 x 1545 x 1500 mm |
